Field test systems

For the flow measurement in sewer systems there is a wide variety of measuring systems available. These enable us to record flow velocity as well as water level with the help of ultrasound, radar, bubbling, pressure probes and magnetic-inductive methods.

• continuous logging of precipitation as point measurements
• Recording of duration, time and intesity of the rain events

These probes are used for simultaneous, continuous recording of up to seven parameters in bodies of water. The data is stored in a data logger.

The record the basic data for dirt freight calculations, the COD (chemical oygen demand) is required as the primary input variable. With our COD probes it is possible to record continuous hydrographs of COD using the UV measuring method. Alternatively, samplers in combination with analysis in the laboratory are available.

For the design of infiltration systems, precise knowledge of the kf value is required. With the help of a double ring infiltrometer or an open-end-test, the infiltration capacity of the subsoil can be determined.

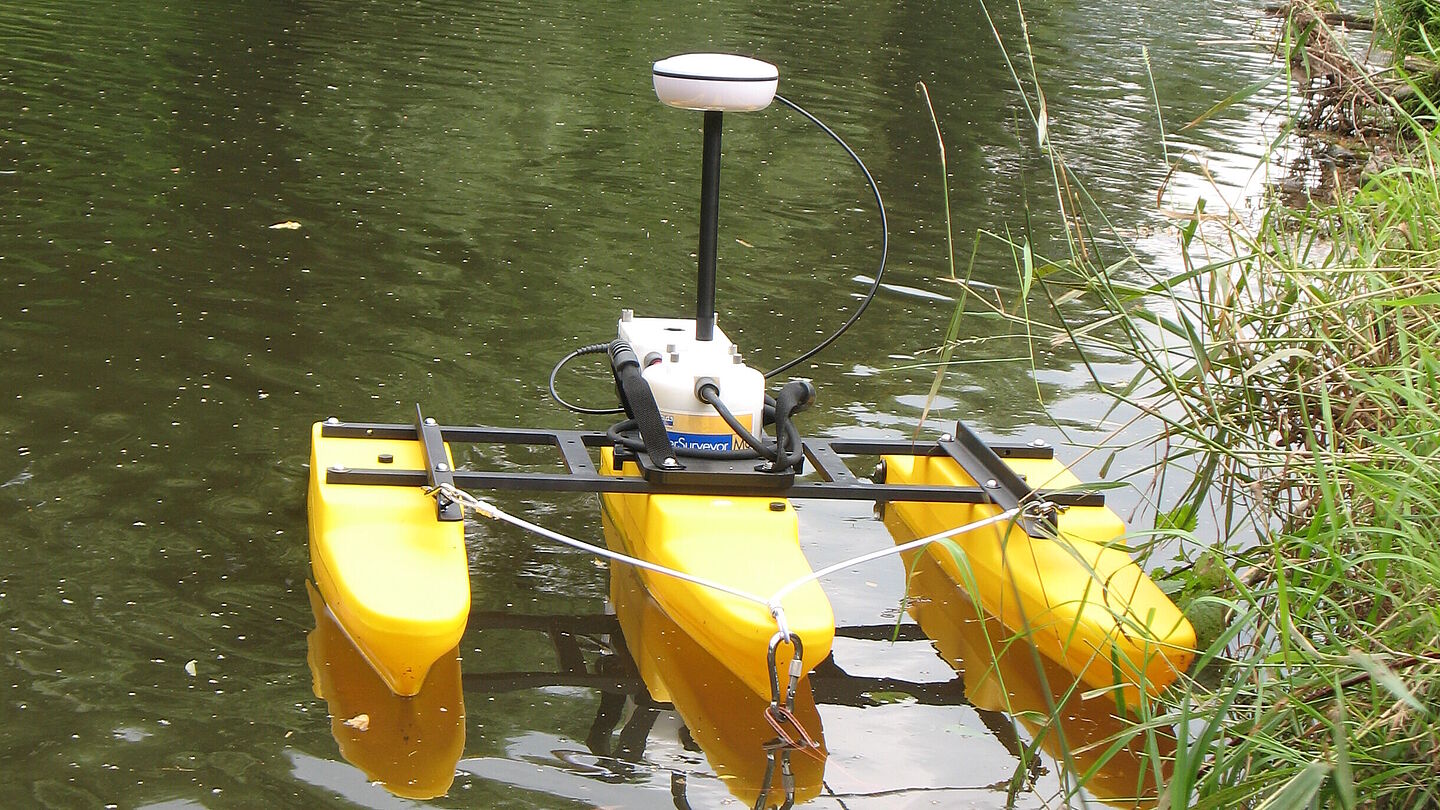

• ADCP: Acoustic Doppler Current Profiler

• Mobile measuring of discharge and 3D flow velocity using four ultrasonic transducers based on the Doppler effect that are placed just below the water surface

• Evaluation using AGILA according to the LAWA level regulation is possible

• Measurement of the distribution of suspended matter in bodies of water

• 2 ADCP-devices are available

using Doppler ultrasound, magnetic-inductive method, radar, rod wing floating wing

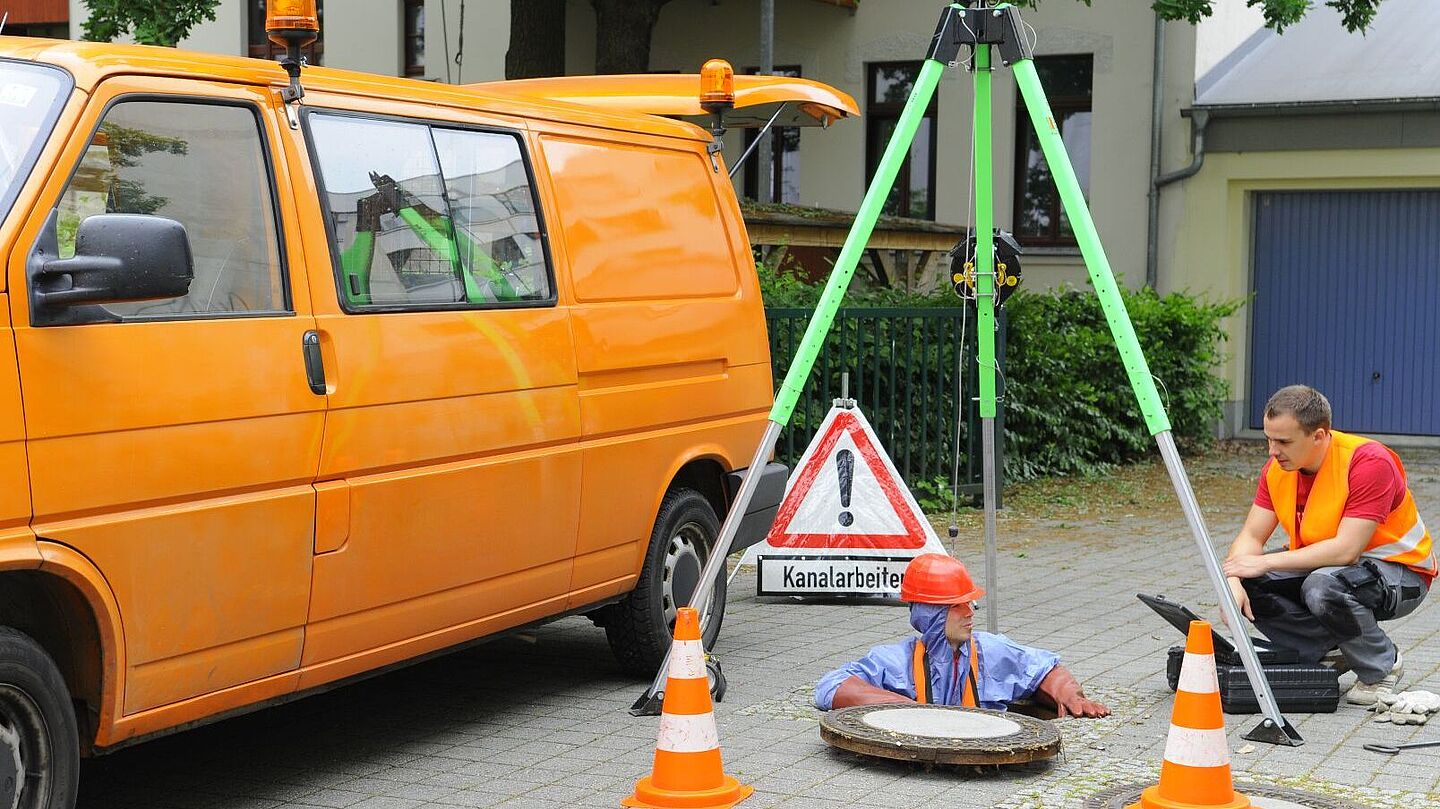

personal protective equipment, gas detectors, shutoff devices, rescue lifting gear, vehicle with rotating beacon

equipped with data loggers for recording O2, humidity, pH, air temperature, global radiation, water temperature, water level and H2S
